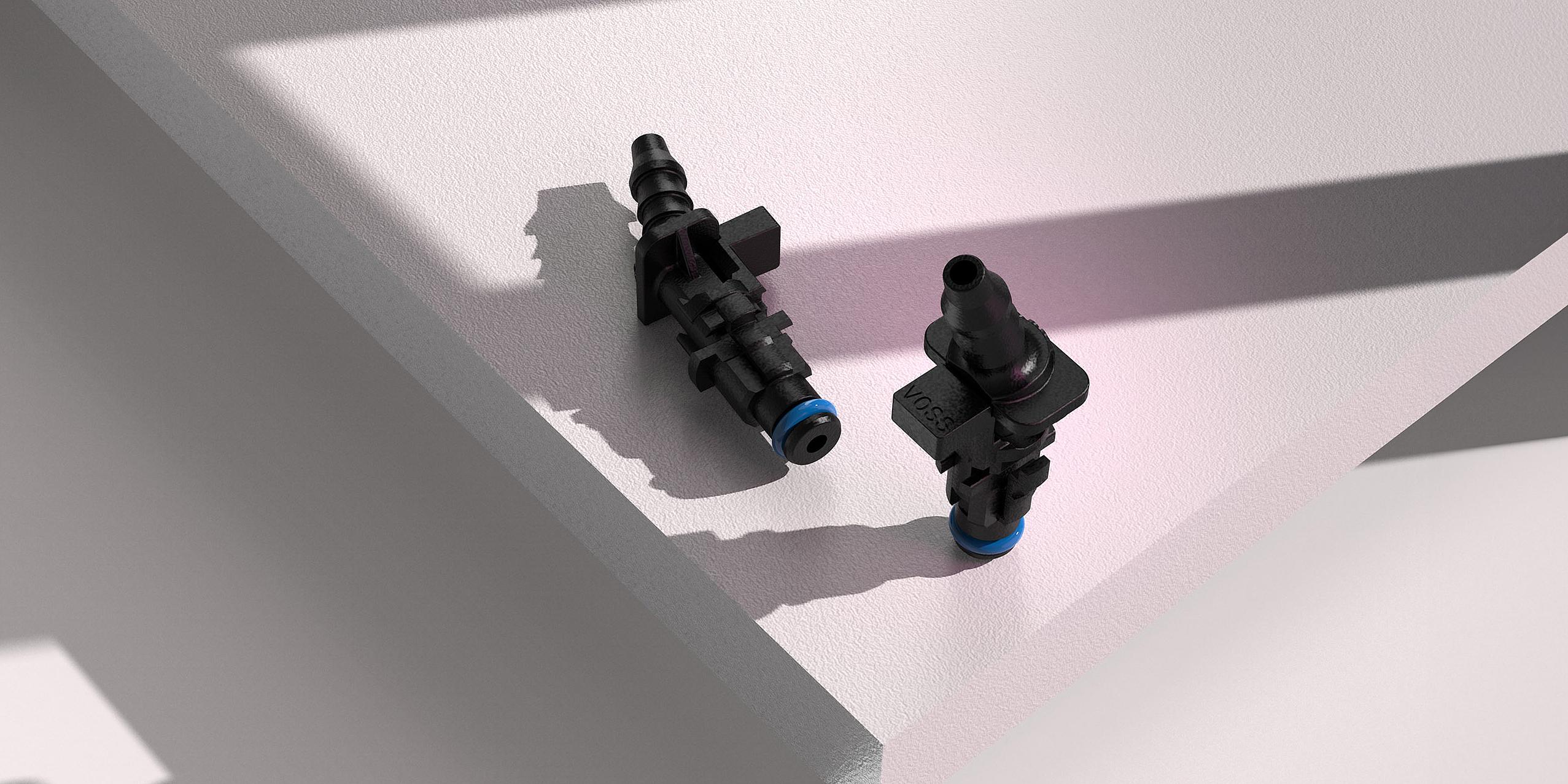

Quick connect system 250
The connections of return lines connectors ("leak-off rails") in common-rail systems are generally predetermined by the design of the manufacturer. The VOSS quick connect system 250 is suitable for connection bores according to the Bosch specification.
Big performance on a small scale in the quick connect system 250
Even small quick connect systems must meet high requirements in terms of tightness, pressure and temperature resistance if they are to be used near to the engine. Like the VOSS quick connect system 250. It ensures the quick and safe connection of nylon tubes or hoses in metal holes according to Bosch specifications. It can be disassembled manually.
Product advantages
- Quick and safe connection of return lines in common-rail fuel systems
- Very low overall height
- Manual dismantling possible
- Line assembly on request
Technical data
Line connection
Fir-tree connection of nylon tubes or hose connection via hose connector
Plug designs
Elbow, T- and L-plugs
Plug body material
Plastic
Connection port
Made of metal, according to the Bosch specification
Size
Nominal size 5.6
Working pressure
Max. 5 bar
Application of pressure
Designed for vacuum
Temperature range
-30 °C to +150 °C
Typical applications
The VOSS quick connect system 250 is used in common rail fuel systems that use connection holes according to the Bosch specification.
Passenger cars and light commercial vehicles
Secure quick connect system for leak-off rails in the smallest possible assembly space
