Quick connect system 241

With the 241 quick connect system, VOSS has been offering a proven solution for connections according to SAE J2044 for many years. We serve customers who have adjusted to this standard for the connection of fuel, SCR and thermal management lines.

Fast and secure connection according to SAE J2044

The range of quick connect systems 241 includes plastic couplings of various sizes and shapes, also with a flow stop. Assembly and disassembly are extremely simple: the coupling is plugged into the male connector to the limit stop. The retaining clip snaps into place behind the collar of the male connector. After manual withdrawal of the coupling, the connection is locked. For disassembly, the coupling is moved in the push-in direction. The retaining clip can be pressed together, and the coupling can be removed.

A version with an alternative opening mechanism is offered by the VOSS quick connect system 241N.

Product advantages

  • Fast and reliable assembly and disassembly
  • Versatile in use for fuel, SCR and thermal management lines
  • Variant 241CS for special crash safety

Contact us now

Technical data

Line connection
Couplings for the fir-tree connection of nylon tubes

Program
Straight and elbow couplings

Valve integration
Flow stop valves

Connecting profile
According to SAE J2044

Material coupling body
Plastic

Sizes
SAE connection sizes 5/16" and 3/8"

Working pressure
Max. 12 bar, according to SAE J2044

Temperature range
-40 °C to +115 °C, according to SAE J2044

More detailed information



VOSS assembly instruction QC system 241



DE EN
PDF

Typical applications

The VOSS quick connect system 241 can be installed in all fuel, SCR or thermal management systems for connection to connectors according to SAE J2044.

Passenger cars and light commercial vehicles

Quick-connect system featuring straight and elbow couplings for effortless handling and a secure connection.

Learn more about our industry solutions

Auto auf Straße

Product videos and CAD data

Discover the benefits and features of our innovative products in video format and access our extensive CAD database - free of charge and in the highest quality.

To the video center Download CAD data

Matching products

We take a holistic approach. Beyond connection systems, VOSS provides endless possibilities with customized line assembly.

Fuel lines
Depending on the system, VOSS low-pressure fuel lines connect to the tank, the pump, the filter, the rail and the engine as well as the diesel engine to the tank as leak-off rails. Equipped with the appropriate connection technology, valves and other components, they become tailor-made solutions for mobile and stationary fuel systems.
CategoryReady-to-install lines

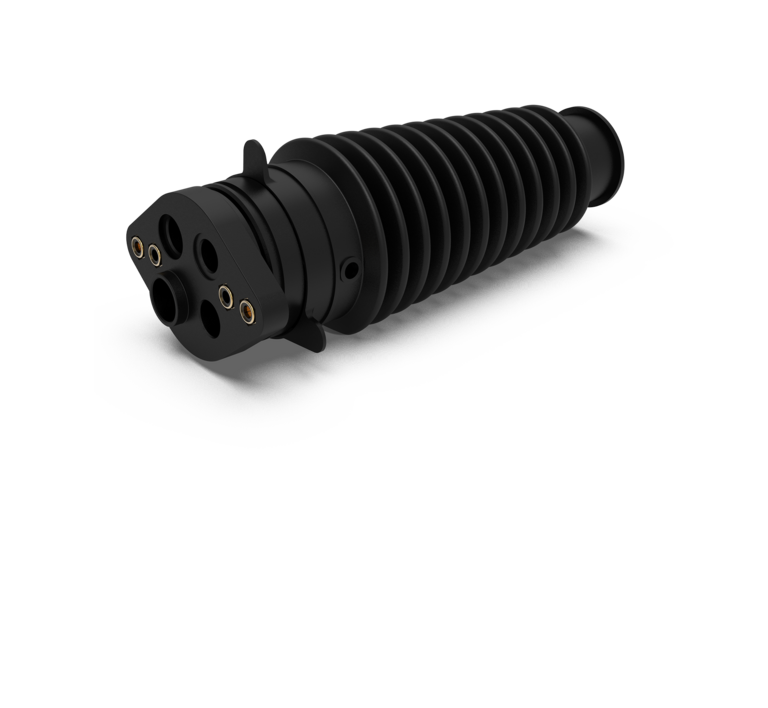

Manifolds and in-line connectors for cooling water
For all fluid systems in vehicles, manifolds and in-line connectors are essential components for designing the line routing. Manifolds and in-line connectors for the cooling system are part of the standard range of VOSS quick connect systems. Or they are developed individually in cooperation with the customers.
CategoryManifolds and in-line connectors

Need a simple alternative for SAE J2044 connections?

The VOSS quick connect system 241 is the base version that has been proven in use for a long time.
