Pressure regulation unit

Our customized, modular valve is specially developed for regulating the pressure of hydrogen in fuel cells and hydrogen combustion engines. It offers a reliable solution for the safe and efficient control of the hydrogen flow and can be flexibly adapted to different requirements.

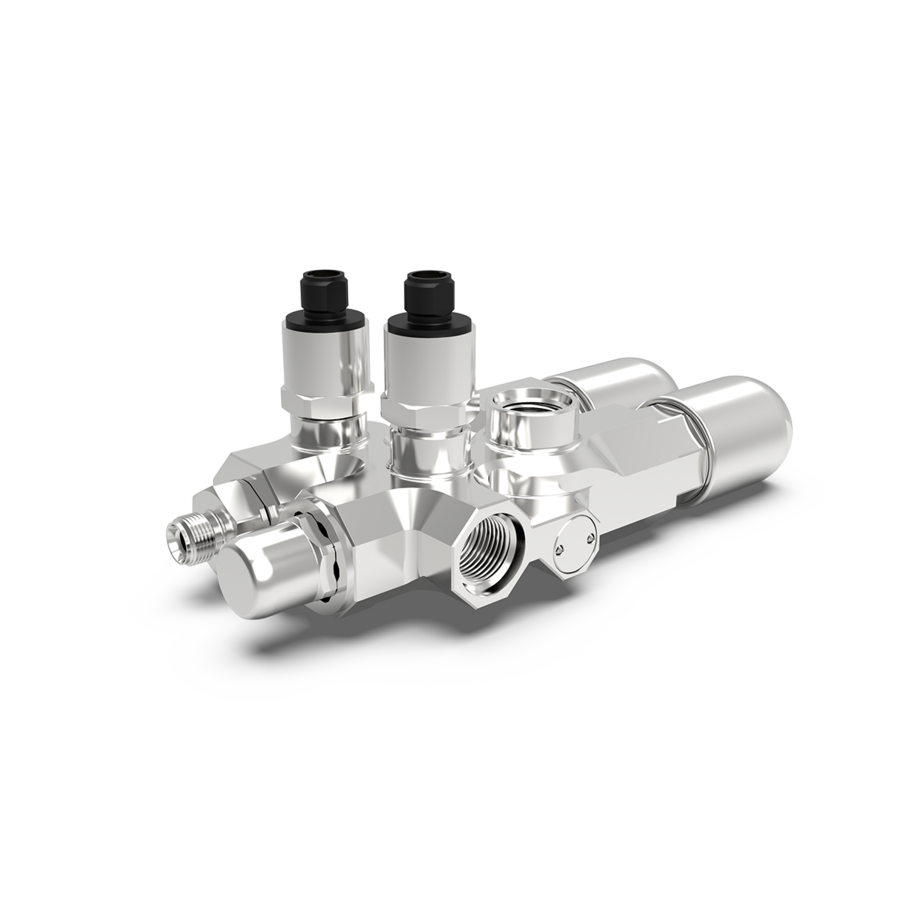

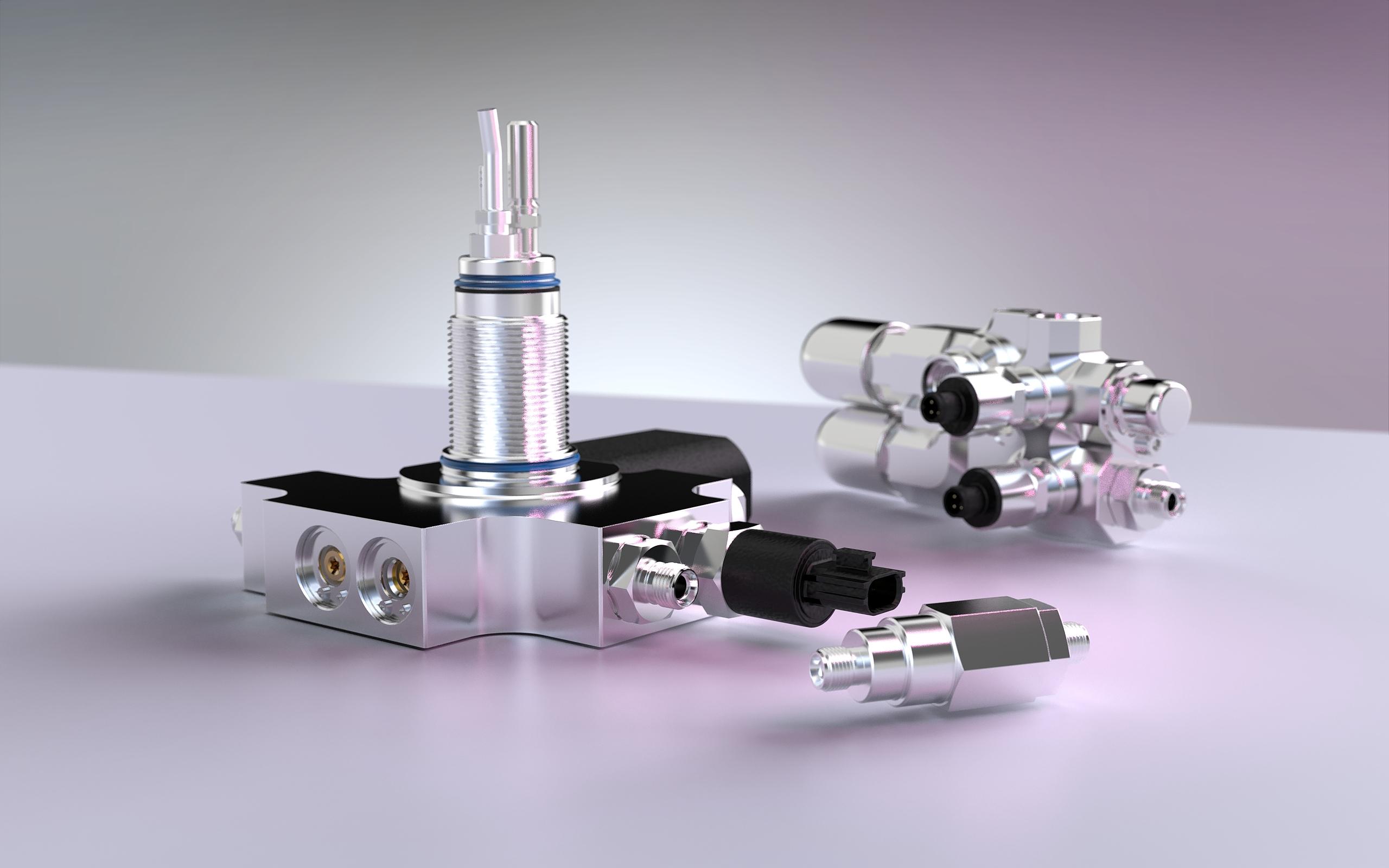

Modular pressure regulation unit for pressurized hydrogen

With the experience gained from the first generation of 700 bar stainless steel valves, VOSS is positioning itself as a pioneer in the hydrogen sector.

The new, modular valve family has been specially developed for applications in the commercial vehicle sector that require high flow rates (Hydrogen Commercial Flowrate). The valves offer customized solutions for the efficient regulation of pressure and can be flexibly configured to be optimally adapted to different needs.

Product advantages

- Developed for high flow rates (hydrogen commercial flow rate)

- International product design Integration of leading standards (GB-T, ISO, EC-R134, ANSI HGV 3.1)

- Complete gas dynamic digital twin available

- Replaceable filters with low pressure loss

- Adjustable outlet pressure

- Adjustable control trim

- Pressure relief valve also available as a stand-alone product

Technical data

Realization of different output pressures of the control unit or activation pressures of the pressure relief valve

Materials
Aluminum, stainless steel, PEEK, POM, brass

Temperature range
-40 °C to +85 °C

Mass flow
6 g/s, at P=30 bar

Weight
approx. 3000 g

Dimensions
88 x 78 x 184 mm

Low pressure side incl. pressure relief valve
- Sensor measuring range: 0-25 bar
- Nominal pressure: 8-25 bar +/-1.5 bar
- Connection: VOSSLok40 MM12 (metal-to-metal sealing)
- Release pressure safety device PRV: 10-30 +/-1.5 bar

High pressure side
- Sensor measuring range: 0-1000 bar
- Nominal pressure: 700 bar/15 °C
(maximum working pressure 875 bar/85 °C)
- Connection: VOSSLok40 MM08 (metal-to-metal sealing)
