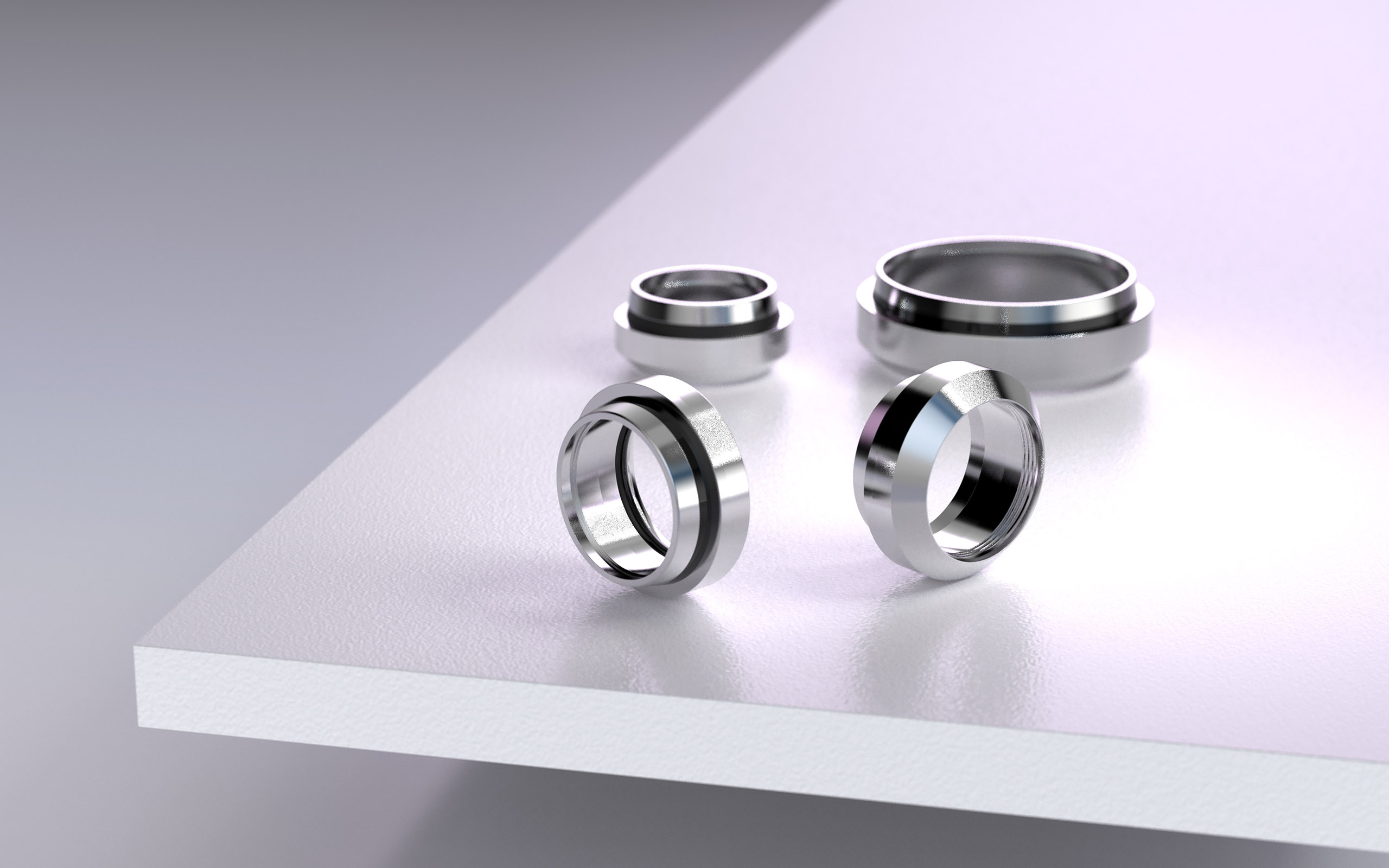

Cutting ring ES-4 (VA)
VOSS ES-4 and VOSS ES-4 VA is the cutting ring technology with additional soft seal and integrated block stop made of steel and stainless steel. The VOSS cutting ring with permanent leakage safety.
The soft-sealing ES-4 and ES-4 VA cutting rings from VOSS are a reliable guarantee for leakage safety and offer a combination of safety, pressure resistance, durability and economy for applications in steel and stainless steel.
Here is an overview of the most important features:
Security:
Double-cutting edge technology with additional soft sealing elements: The ES-4 (VA) cutting ring combines the proven double-edge technology with additional soft seals or, in the case of the ES-4 VA, with a soft seal and an imitation labyrinth seal in the secondary area.
This guarantees significantly increased leakage safety by sealing the primary leakage paths at the 24° cone and between the cutting ring and pipe.
Pressure resistance:
The ES-4 (VA) is the perfect solution wherever increased leakage safety is required. In the lightweight "L" series, the ES-4 soft-sealing cutting ring can withstand pressures of up to 500 bar The safety factor is even four times the value for all pressure specifications. This provides additional safety in the event of unintentional overloading of the connection point.
Durability:
Due to the VOSS coat zinc-nickel-based surface protection, the ES-4 cutting ring is optimally protected against corrosion. The ES-4 VA cutting ring is made entirely of corrosion-free stainless steel. The additional soft-sealing elements are also protected against flushing out and rolling due to the complete chambering when installed. The joint remains tight without the so-called "sweating effect".
Cost-effectiveness: Compared to other solutions, ES-4 cutting rings are an attractive economic choice. You minimize rework, repair costs and production downtime. They also enable flexible system design and enhance the image of your hydraulic system due to their durability.
Product advantages
Excellent leakage safety due to optimum pipe incision of the two-edge technology, which has been tried and tested for decades, and additional soft seal. No "sweating effect".
Pressure resistance
Highest pressure resistance due to geometric reinforcement.
Corrosion resistance
Maximum corrosion protection due to its zinc-nickel surface or 100% stainless steel
Over assembly protection
Maximum protection against over-assembly due to block stop.
Repeat assembly
Repeat assembly is possible without any problems.
Tightness
Complete chambering prevents the soft sealing elements from rolling or extruding.
Technical data
Material
VOSS-specified special material with FKM soft seals or stainless steel version with FKM soft seal and imitation labyrinth seal.
Max. operating pressure
Up to 500 bar in the "L" series, up to 800 bar in the "S" series
Dimensions
For steel and stainless steel pipes - pipe OD 6mm - 42mm
More detailed information
Details at a glance
The economically attractive solution for applications that require maximum leakage protection.
Safety has top priority
With the ES-4 and ES-4 VA, our engineers have developed a soft-sealing cutting ring that offers both safety and economic advantages over conventional cutting rings.
Two sealing shapes optimally combined
The ES-4 (VA) cutting ring is based on the proven VOSS pipe connection in accordance with ISO 8434-1.
The primary metal-sealing cutting ring is supplemented by additional soft seals made of FKM in the secondary area. This increases the leakage resistance of the connection point.
More safety due to over-mounting protection
The chambering of the soft seal in stable, gap-free installation spaces prevents it from being flushed out under full system pressure, thereby enhancing leakage safety.
This type of chambering is achieved by the Stop function of the ES-4 cutting ring. The cutting ring geometry is designed in such a way that, despite of the block effect remains highly elastic. It also prevents cutting too deeply into the pipe and is particularly effective with thin-walled pipes against constrictions.
Product videos and CAD data
Discover the benefits and assembly information of our innovative products in video format and access our extensive CAD database - free of charge and in the highest quality.
Please always observe the current operating and assembly instructions when handling VOSS preassembly devices, tools and products.
Typical applications
The metal-sealing VOSS ES-4 (VA) cutting ring with additional soft seal offers maximum functionality and leakage safety for a wide range of applications.
Agriculture
The ES-4 (VA) cutting ring is the optimum connection solution when ultra-fine sealing and corrosion protection are required.
Construction machinery
Due to its robust design and additional soft seals, the ES-4 (VA) cutting ring ensures high pressure resistance, even under dynamic loads
Marine and offshore
The ES-4 (VA) cutting ring offers maximum corrosion protection for numerous applications on and below deck or in permanently corrosive environmental conditions.
Matching products
Our approach is holistic. In addition to a wide range of suitable connection components, VOSS offers an extensive portfolio of preassembly devices, tools and aids.
