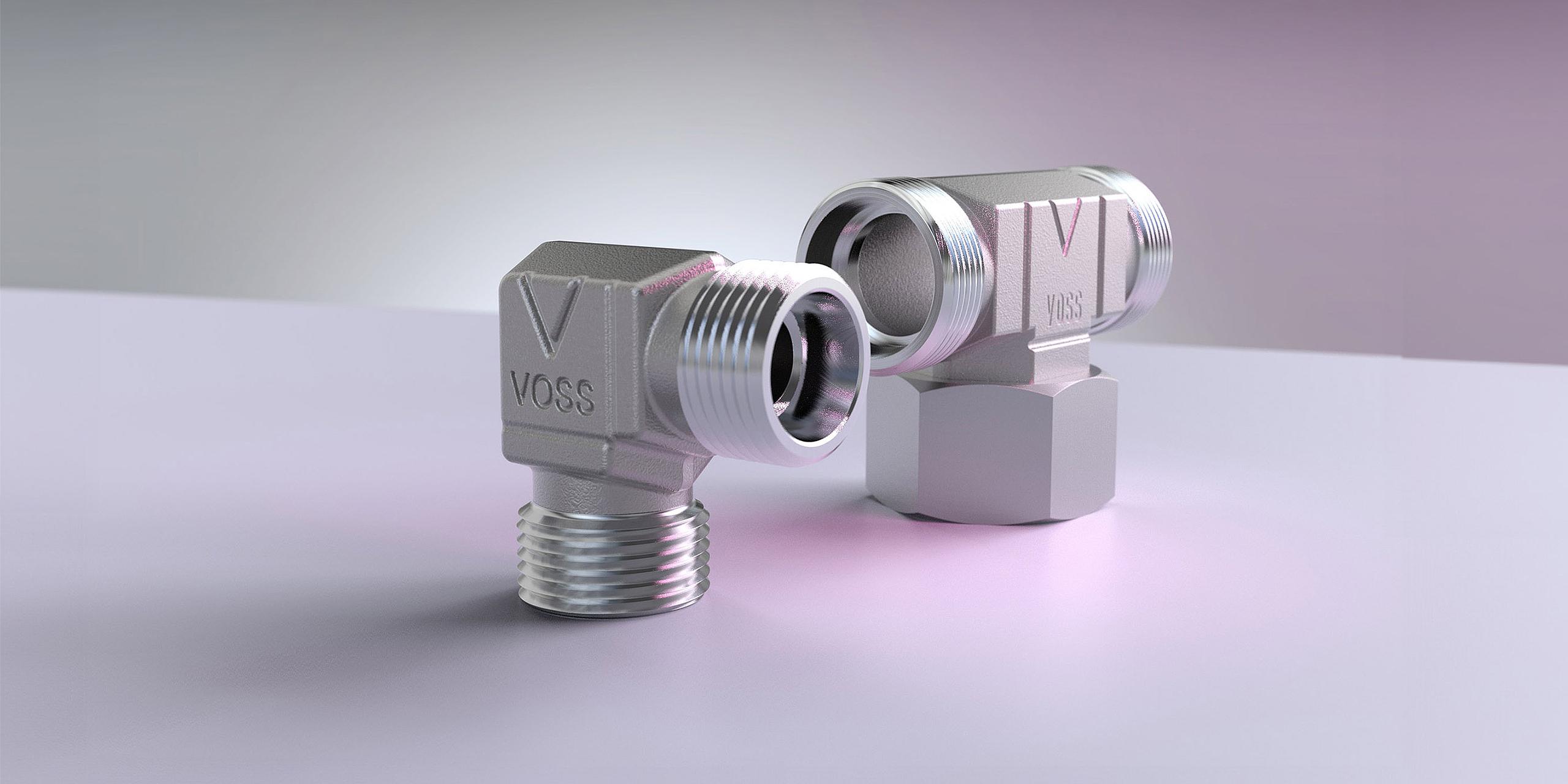

24° tube coupling
The extensive range of 24° tube coupling to ISO 8434-1 and DIN 2353 in steel and stainless steel includes a variety of valves, special designs and connection systems and is protected with the high-quality corrosion protection VOSS coat as standard.
24° tube couplings offer maximum flexibility and cost-effectiveness
VOSS 24° steel tube couplings are available in a light "L" and a heavy "S" series and in many cases even exceed the requirements of international standards and specifications. Due to the increased pressure levels, the lighter and space-saving L series can be used instead of the S series for many applications. In addition to requiring less installation space and saving weight, this can also provide significant economic benefits, offering greater flexibility in your machine design.
Product advantages
- Maximum flexibility due to an extensive product range
- Increased pressure stage
- VOSS coat corrosion protection as a standard surface finish
- User-friendly friction coefficients reduce assembly forces
- Compatible with a wide range of tube connection systems
- Universally suitable for almost all hydraulic applications
- Also available in stainless steel with FKM soft seal
Technical data
Material
Steel according to VOSS specification or stainless steel according to 1.4571
Soft seal made of NBR (steel) or FKM (VA)
Operating pressure
Steel fittings up to 500 bar (L-) or 800 bar (S-series)
Dimensions
For steel and stainless steel tubes - tube OD 6mm - 42mm
Corrosion protection
VOSS coat - corrosion protection based on zinc-nickel or stainless steel 1.4571
Typical applications
With the standard VOSS coat corrosion protection and a wide selection of different connection systems, VOSS 24° tube couplings offer maximum flexibility and cost-effectiveness in your machine and system design.
Mobile machinery
When it comes to worry-free use with the highest bending fatigue loads and the best corrosion protection.
Agriculture
Whether aggressive fertilizers, mud or constant rain. VOSS 24 ° tube couplings are optimally protected against corrosion.
Stationary machinery
VOSS 24° tube couplings largely exceed the requirements of international norms and standards and thus offer the greatest possible protection against leaks.
Rail technology
VOSS 24° tube couplings offer maximum reliability and safety even after millions of kilometers.
CAD data
Access our extensive CAD database - free of charge and in the highest quality.
Matching products
Our approach is holistic. In addition to a wide range of suitable connection components, VOSS offers an extensive portfolio of preassembly devices, tools and aids.
